Make Security Eternal

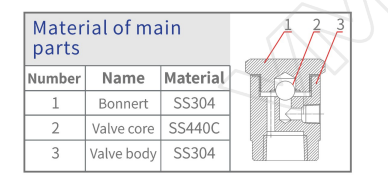

VMV vacuum breaker protect your equipment from vacuum damage while helping to efficiently drain condensate from lines and containers. Low opening gland Copper pad Hexagonal body for easy installation Hexagonal body for easy installation Stainless steel valve core with precision contact Air interface Body and bonnet available in stainless steel or brass

Working Principle

when working fine The high and precision valve core valve seat adopts a linear seal. When the pipeline is under pressure, the valve seat and valve core is tightly closed, and there is no steam leakage.

when a vacuum occurs When the pressure of the steam system drops to normal pressure, the steam in the equipment cools down, and the valve core opens when a negative pressure is generated and a vacuum state occurs. Air entering

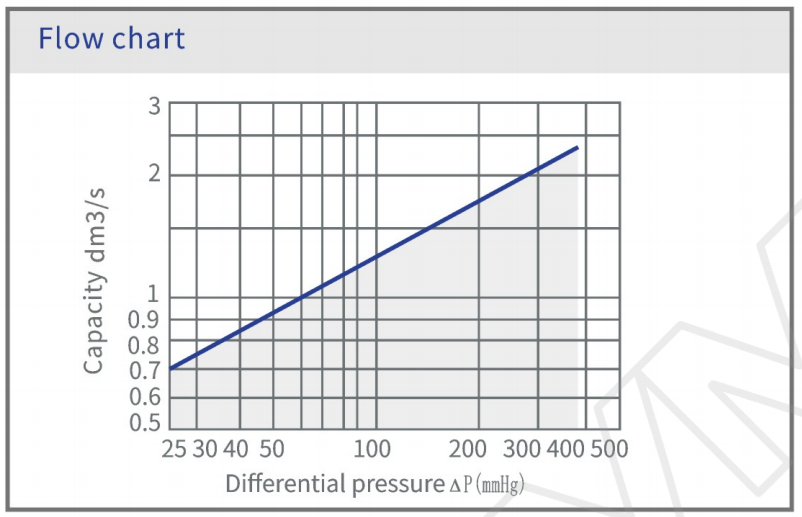

The differential pressure at which the valve opens is ４.６ｍｍＨｇ

Application

This product is robust and reliable and can be used in a variety of systems and equipment to prevent vacuum,such as:

• Heat Exchanger
• Steam Storage Tank
• Boiler
• Jacketed pot
• Sterilization room
• Steam main line

Advantage

• Protects expensive equipment from vacuum damage
• Small size and sensitive action
• Simple, robust and reliable design
• VMV's domestic expert team technology, knowledge and service guarantee
•

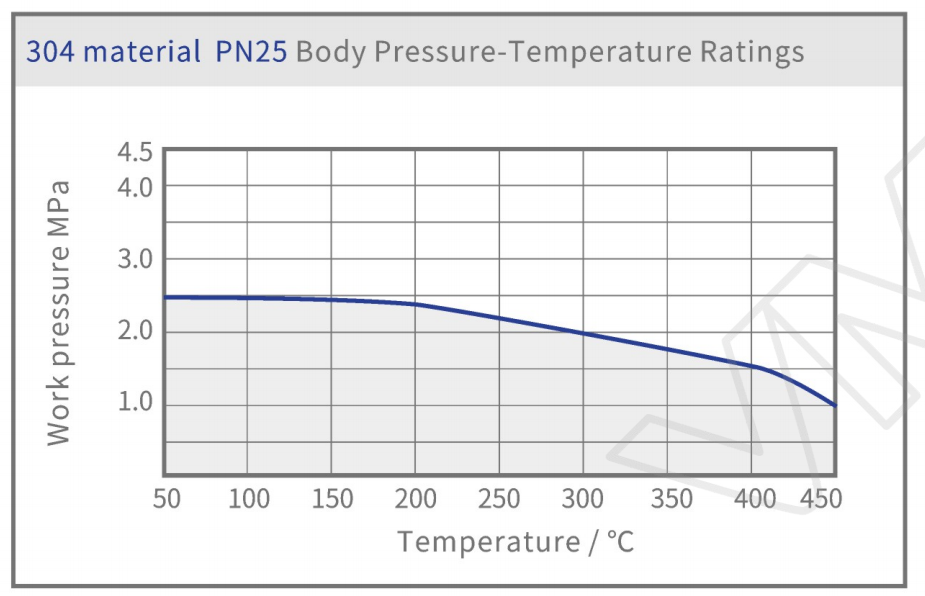

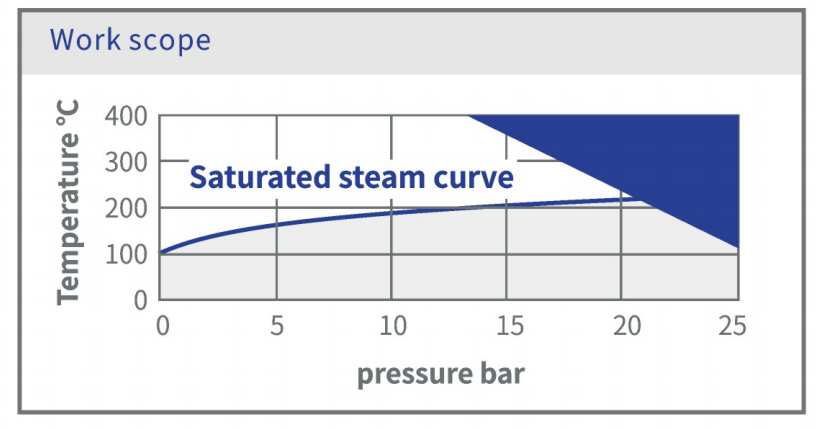

Technical Parameter



Working medium	Steam, Air	Max. allowable temperature	200℃/300℃/450℃
Nominal pressure	2.5MPa	Max. air intake	9m³/h
Max.working pressure	2.1MPa	Noload leak rate	0.1%
Max.pressure	0.01MPa	Connection	RC

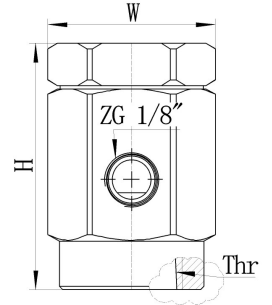

Size Parameters

Connection	Pressure	DN(IN)	H mm	W mm	KG
T	PN16/25 CL150	15(0.5")	52	41	0.38
		20(0.75")	52	41	0.38
		25(1")	76	52	0.71
